**Custom Sized / Made To Order/measure** Double Steel Security Personnel Pedestrian Door - Industrial Grade Exterior Outdoor Security Door
THIS IS A CUSTOM MADE PRODUCT ON A LEAD TIME OF 12-14 WEEKS. IF YOU CANNOT WAIT PLEASE DO NOT ORDER AS ONCE ORDERED, IT IS A NON CANCELLABLE AND NON REFUNDABLE CUSTOM MADE ITEM.
Looking for stock sized double door 1800-1900mm w x 2035 - 2100mm High?

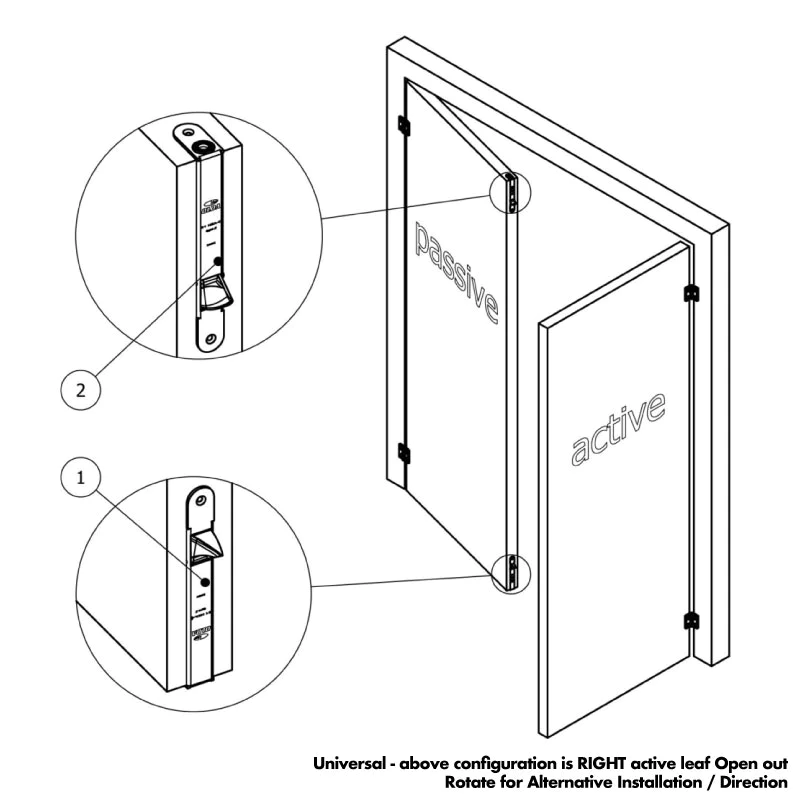

Note: This is a universal door & the Active leaf (primary opening door) can be alternated by rotating the frame upside down 180˚. The Active leaf is secured by hande and/or lock/key set. The passive leaf is secured by internal concealed flush bolts top & bottom which can be accessed after opening the primary leaf. the active leaf has door furniture only ie. handle, keyset, pushpad/bar etc.
UNIVERSALLY HINGED LEFT OR RIGHT. SIMPLY ROTATE THE DOOR 180° TO HINGE ON THE OPPOSITE SIDE. SIMPLY SELECT OPEN IN OUR OUT. HINGED SIDE YOU CAN SELECT AT THE POINT OF INSTALLATION DEPENDING ON THE ORIENTATION OF THE INSTALL.
Steel security door for outdoor/exterior use - industrial-grade personnel door is the ideal Security Door for Garage, Warehouse, Shed, Industrial Unit, Shipping Container, Farm Barn - can be primed & painted any colour yourself) complete with outer frame, & optional stainless steel door handle & lock with internal thumb turn & 3 sets of keys, single point locking mechanism). OPTIONAL POWDER COATED COLOURS (AT EXTRA COST)
- RAL 9003 WHITE (painted both sides in/out)
- RAL 7016 ANTHRACITE GREY (painted both sides in/out)
PLEASE NOTE - THIS IS ONE STANDARD SIZED 2035mm h x 1800mm wide - ITEM IS RECOMMENDED TO BE MEASURED, ORDERED AND INSTALLED BY A SUITABLE EXPERIENCED PROFESSIONAL AS WE DO NOT TAKE ANY LIABILITY FOR INCORRECT MEASUREMENTS. FULL TECHNICAL DRAWING WITH ALL DIMENSIONS IS BELOW & INSTALLATION INSTRUCTIONS.

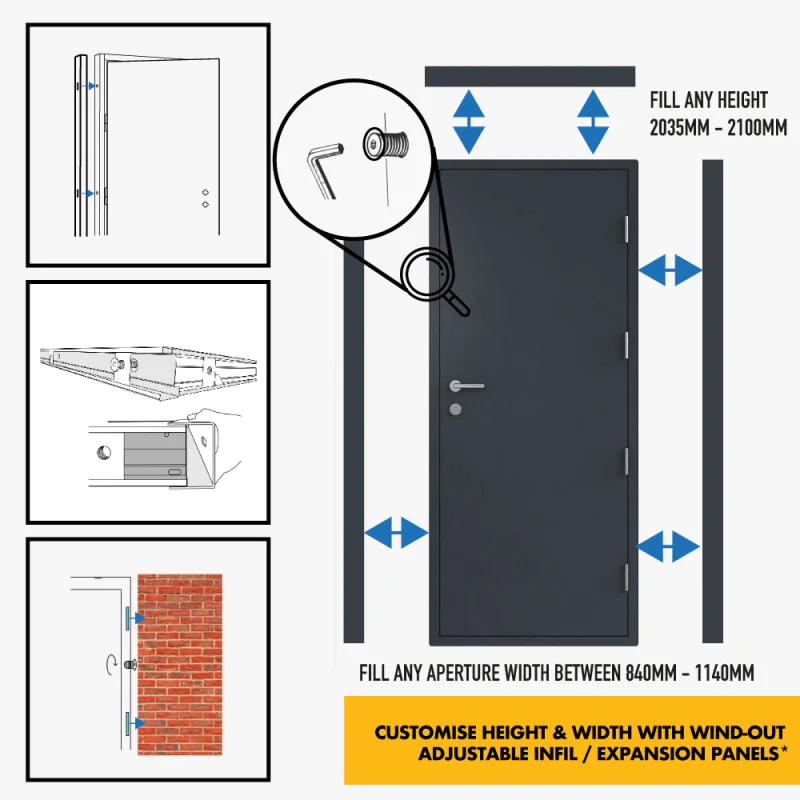

FOR CUSTOM SIZES, PLEASE SEE OUR SIDE EXPANSION / EXTENSION PANELS THAT COME WITH WIND OUT LUGS ALLOWING EXTENSION OF BOTH SIDES AND HEADER SECTION FROM 10MM -100MM, THUS MAKING THIS DOOR SUITABLE FOR ALL SIZED APERTURES FROM 1800 - 1900mm WIDTH AND 2035MM TO 2100MM H. FUTHER CUSTOM SIZES MADE ON REQUEST. CONTACT US FOR A QUOTE
Stock Door Size | + 35mm Side Panel | + 55mm Side Panel | + 35mm Header Panel | + 55mm Header Panel | |
1800mm x 2035mm | 1810mm - 1850mm | 1850mm - 1900mm | 2035mm - 2070mm | 2070mm - 2090mm |
Optional Add on 500mm x 300mm Louvre Vent or 400mm x 400mm / 220mm x 1500mm Vision Panels - SELF INSTALLATION / CUTTING REQUIRED (these are supplied with the door only for the customer to install) see instructions below for details. This add on is not pre-installed by ourselves and is only supplied with the door for the customer / installer to fit. Requires a competent and experienced installer, we accept no liability for mis-installation / mis-cutting or damage to product during installation. Frame powder coated both sides and will be sent the same colour as the door selected. Note, 150mm clearance must be left around all 4 sides of the door.
Weight: 135kg

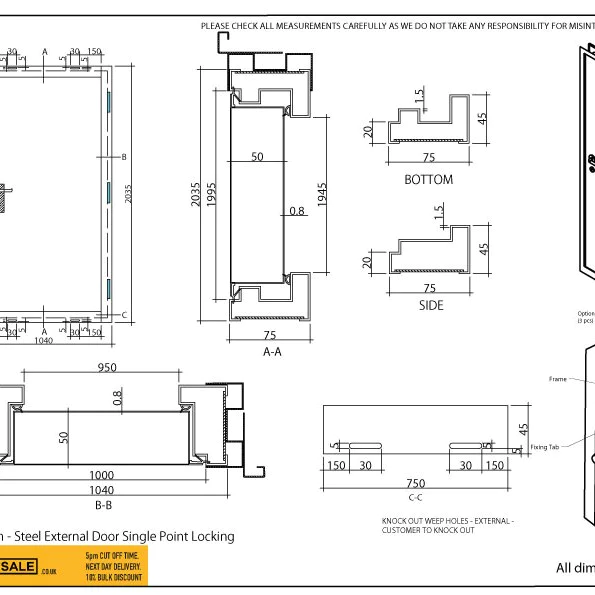

DOWNLOAD PDF TECHNICAL DRAWING / DIMENSIONS
DOWNLOAD STEEL DOOR INSTALLATION INSTRUCTIONS / MANUAL
DOWNLOAD INSTRUCTIONS MANUAL FOR SIDE/HEADER EXPANSION INFIL PANELS
DOWNLOAD VISION GLASS PANEL / LOUVRE VENT INSTRUCTIONS
DOWNLOAD FIRE EXIT PUSH PAD/BAR + OUTSIDE ACCESS DEVICE INSTRUCTIONS
DOWNLOAD FIRE EXIT PUSH PAD/BAR + EXTERNAL BLANK INSTRUCTIONS
DOWNLOAD DOOR EXTERNAL BLANK / BLANKING PLATE INSTRUCTIONS
DOWNLOAD COMBINATION CODE HANDLE LOCK INSTALLATION INSTRUCTIONS
DOWNLOAD WC VACANT/ENGAGED CONVERSION KIT INSTALLATION INSTRUCTIONS

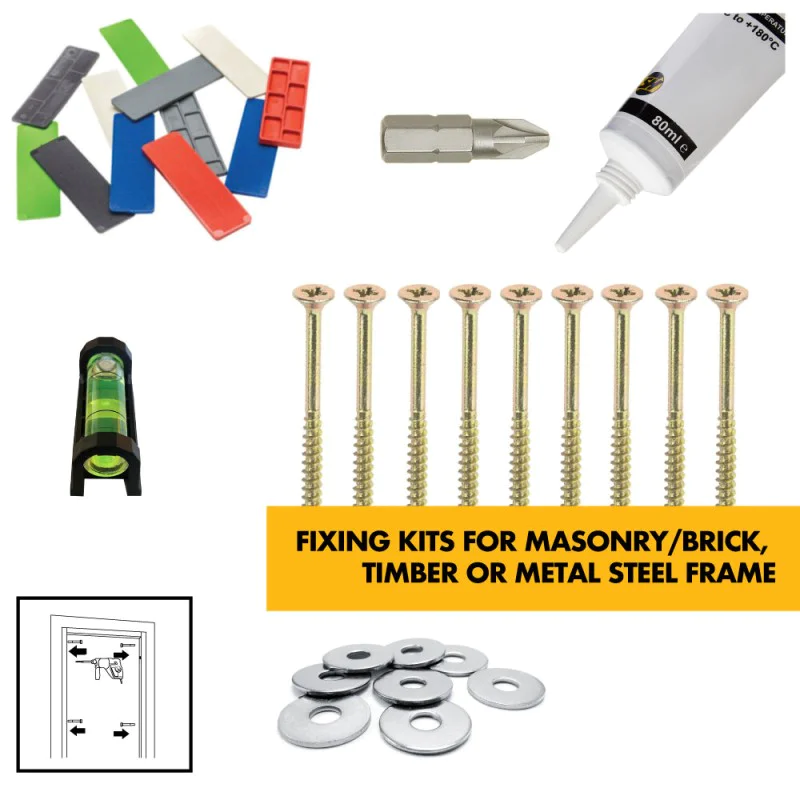

1800mm x 2035mm outer dimensions ie. to fit 1800mm x 2035mm cut out (clear opening 1710mm) - door frame thickness 75mm / door leaf thickness 45mm. - comes pre-hung in frame and fixing points located around the frame for easy install with the correct screws/fixings (not supplied) into brick, timber, steel or other building material. We recommend adding 5-10mm to the external size about for fitting which can be filled with foam / silicone. We would recommend adding a rain drip to any inward opening doors being installed externally helping to prevent water ingress. Frame features knock out weep holes at external footer.

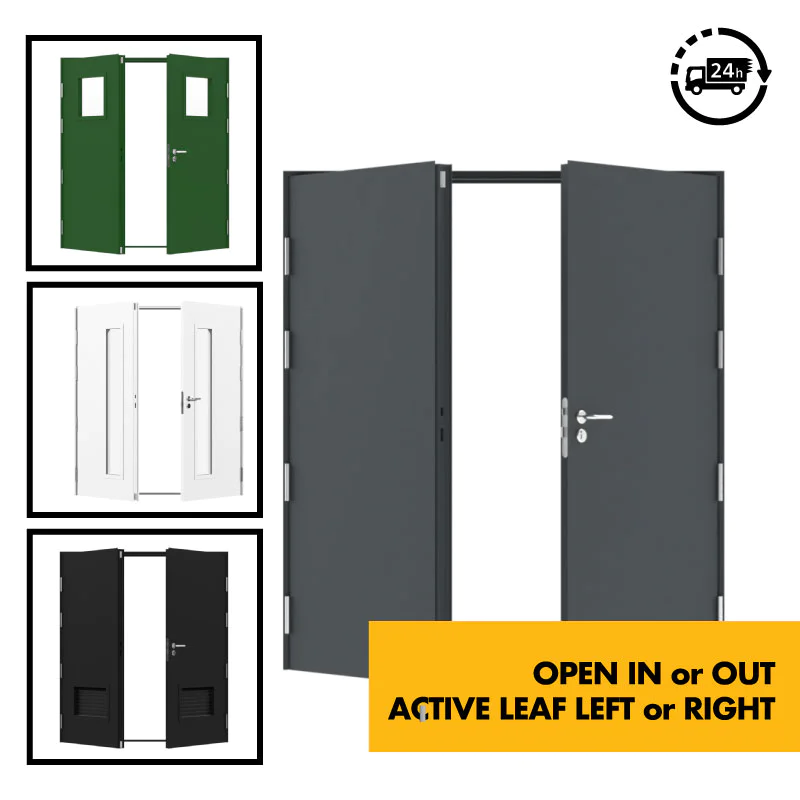

WE STOCK ALL: CONFIGURATIONS OF DOOR OPENING INWARDS OR OUTWARDS, AS VIEWED FROM OUTSIDE- Doors are universal and can be fitted with hinges either on the left or the right hand as viewed from outside by rotating the pre-latch mechanism,- SEE IMAGE FOR FURTHER DETAILS ON CONFIGURATIONS WHEN SELECTING YOUR VARIATION OF DOOR AS INCORRECT ORDERS/RETURNS MUST BE RETURNED AT BUYERS COST. IF IN DOUBT PLEASE ASK.
Door Frame Material | 1.5mm Galvanised Steel |
Door Frame Thickness | 90mm |
Door Leaf Material | Double skinned 0.7mm galvanised steel |
Door Leaf Thickness | 45mm |
Door Leaf Core | 50mm Mineral Wool Insulation |
Actual Door Size | 1943mm x 750mm/850mm/950mm |
U Value | 1.6 w/m²k (50mm Mineral Wool Insulation) |
Acoustic Value | 32dBa |
Hinges | 4 Stainless steel hinges |
Lock Cylinder | Eurocylinder 70mm (35 - 35) |
- NOTE: due to manufacturing tolerances with regards to batch variation, we recommend ordering all coloured/powder coated doors for a project at the same time, from the same batch as we cannot be held responsible for any variation that occurs between batches.
- Must be installed by a competent persons, we are not able to train, teach any DIY enthusiast how to fit a door correctly. Whilst its not a difficult job, each individuals competency and skill set varies and thus professional knowledge is advised to fit this product correctly, safely and securely for normal operation.
- Note - door includes mechanical / moving parts such as lock mechanism, hinges, latches and as such requires regular maintenance and upkeep ion the form of regular lubrication/oil applying.
